Aircraft

The total fleet managed by our group includes:

  • 11 - 2,000 L Ayres Thrush aircraft
  • 6 - 3,000 L Air Tractor 802 aircraft
  • 1 - 2,500 L Air Tractor 602 aircraft
  • 2 - Robinson R22 Helicopters
  • 2 - Cessna C210 fixed wing passenger aircraft
  • 1 – Cherokee 6 grass seeding aircraft

Support Equipment

In support of these aircraft are:

  • 5 - Isuzu support vehicles
  • 2 - Hino DG Refuelling vehicles
  • 10 - Toyota 4x4 utilities
  • 6 - Purpose-built chemical mixing trailers

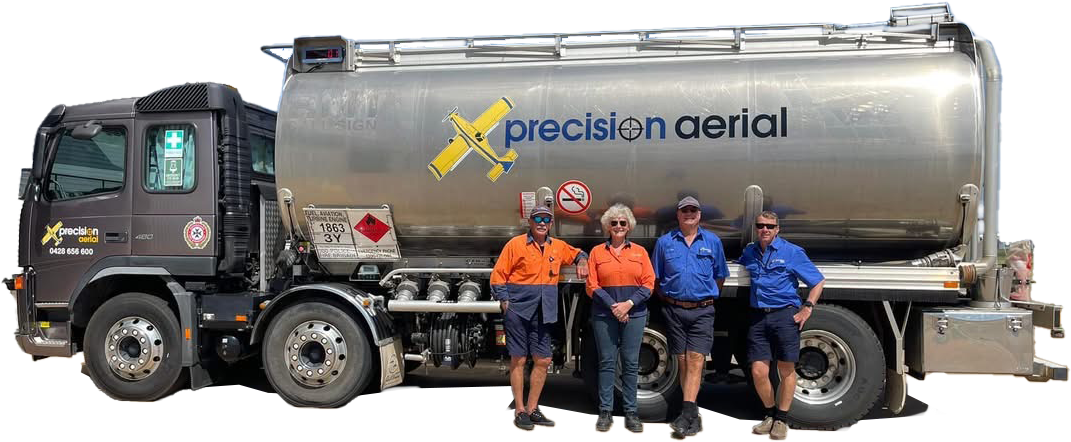

  • 1 - 25,000L Western Star refuelling tanker fitted with 3 inch aircraft loading pump and hoses, aircraft spare wheels and tyres, tools etc
  • 3 - Fully equipped aerial bases at Meandarra (QLD), St George (QLD) and Mungindi (NSW-QLD border) including accommodation
  • 5 - Urea Loaders
interface/aircraft-row-bottom.png
Ayres Thrush 510P

Ayres Thrush 510P

With a payload of 2000 L, the Thrush 510 is one of the most versatile aerial application aircraft available in the world.

With their low profile and outstanding spray pattern, the Precision Aerial group utilises eleven of these aircraft to carry out the majority of our chemical, seeding and pellet applications.

interface/aircraft-row-top.png

The AT-802

With a payload of 3000 L, the AT-802A stands alone.

The AT-802A allows us to cater for all of our agricultural clients during very high workload conditions. It is also the largest, most versatile single engine air tanker in the world, which we use to assist the rural fire services in protecting our communities during bushfire seasons.

The AT-802
interface/aircraft-row-bottom.png
The AT-602

The AT-602

With a payload of 2400 L, the AT-602 stands between the Thrush 510 and larger AT-802 aircraft.

When the 802s are busy with fire-suppression the 602 is a hard-working favourite of our pilots.

interface/aircraft-row-top.png

Robinson R22 Helicopter

With only two-seats, the single-engine R22 utility helicopter is built for great cockpit visibility.

The R22 is useful for job inspections and application quality control and of course... recreation!

R22 Helicopter
interface/aircraft-row-bottom.png
Cessna C210

Cessna C210

Another important aircraft in the Precision Aerial fleet.

Heavily utilised during the fire season as a fire observation aircraft and for use all year around for maintenance and staff relocation.

interface/aircraft-row-top.png

Cherokee 6

Grass seeding...grass seeding.... grass seeding.

The Cherokee is used exclusively by our group for aerial grass seeding (and for commuting to country race days!)

Cherokee 6
interface/aircraft-row-bottom.png
support equipment

Support Equipment

Critical to our aircraft fleet is well-maintained, well-equipped support equipment.

Our extensive fleet of aerial support equipment, enable the Precision Aerial aircraft to efficiently achieve their application targets.

AT 510P Specifications

Length 32 feet 4 inches (9.85 m)
Height 9 feet 4 inches (2.84 m)
Wing Span 47 feet 6 inches (14.47 m)
Wing Area 365 square feet (33.90 m2)
Tread Width 9 feet (2.74 m)
Fuel Capacity 228 gallons (863 liters)
Empty Weight 4,900 pounds (2,223 kilograms)
Typical Operating Weight 10,500 pounds (4,763 kilograms)
Hopper Capacity (Dry) 66 cubic feet (1.87 cu. meters)
Hopper Capacity (Liquid spray system) 510 gallons (1930 liters)
Fuel Consumption 45-60 gph (170-227 lph)

AT 510P Performance

Working Speeds 90-150 mph (145-241 kph)
Stall Speed as Usually Landed 57 mph (92 kph)
Never Exceed Speed 159 mph (256 kph)
Sea Level Rate of Climb at 6,000 lbs 1,075 fpm (327.7 mpm)
Sea Level Rate of Climb at 10,500 lbs 666 fpm (203 mpm)
Take-Off Distance at 10,500 lbs 1,650 feet (503 meters)
Landing Distance as Usually Landed 600 feet (182.8 meters)
Landing Distance as Usually Landed w/Reverse 400 feet (121.9 meters)
Cruising Speed at 55% Power 150 mph (241 kph)
Ferry Range at 45% power a 135 mph at 7,500 feet 770 miles (1,238 kilometers)

AT-602 Specifications

Engine Type P&W PT6A-60AG
Engine SHP 1,050 @ 1,700 RPM
Propeller Hartzell HC-B5MP-3C/M10876ANS
Take-off Weight 12,500 lbs (5.670 kg)
Landing Weight 12,000 lbs (5.443 kg)
Empty Weight with Spray Equipment 5,829 lbs (2.644 kg)
Useful Load 6,671 lbs (3.026 kg)
Hopper Capacity 630 US gal (2.385 L)
Fuel Capacity 216 US gal (817 L)
Wing Span 56 ft (17,06 m)
Wing Area 336 sq ft (31,24 m²)
Main Wheel Size 29.00 x 11-10
Tail Wheel Size 17.5 x 6.25-6

AT-602 Performance

Cruise Speed at 8,000 ft (2.438 m) 182 mph (158 kts)
Working Speed (Typical) 145 mph (126 kts)
Range - Economy Cruise at 8,000 ft (2.438 m) 600 mi (966 km)
Stall Speed - Flaps Up 99 mph (86 kts) at 12,500 lbs (5.670 kg)
Stall Speed - Flaps Down 82 mph (71 kts) at 12,500 lbs (5.670 kg)
Stall Speed as Usually Landed 60 mph (52 kts)
Rate of Climb 650 fpm at 12,500 lbs (5.670 kg)
Take-off Distance 1,830 ft at 12,500 lbs (5.670 kg)

AT-802 Specifications

Engine Type P&W PT6A-65AG
Engine SHP 1,295 @ 1,700 RPM
Propeller Hartzell HC-B5MP-3F/M11276NS
Take-off Weight 16,000 lbs (7.257 kg)
Landing Weight 16,000 lbs (7.257 kg)
Empty Weight with Spray Equipment 6,751 lbs (3.062 kg)
Useful Load 9,249 lbs (4.195 kg)
Hopper Capacity 800 US gal (3.028 L)
Fuel Capacity 254 US gal (961 L)
Wing Span 59.2 ft (18,04 m)
Wing Area 401 sq ft (37,29 m²)
Main Wheel Size 11.00-12
Tail Wheel Size 17.5 x 6.25-6

AT-802 Performance

Cruise Speed at 8,000 ft (2.438 m) 191 mph (166 kts)
Working Speed (Typical) 130-160 mph (113-139 kts)
Range - Economy Cruise at 8,000 ft (2.438 m) 610 mi (982 km)
Stall Speed - Flaps Up 107 mph (92 kts) at 16,000 lbs (7.257 kg)
Stall Speed - Flaps Down 91 mph (79 kts) at 16,000 lbs (7.257 kg)
Stall Speed as Usually Landed 63 mph (54 kts)
Rate of Climb 780 fpm at 16,000 lbs (7.257 kg)
Take-off Distance 2,000 ft at 16,000 lbs (7.257 kg)

Robinson R22 Specifications

Engine Lycoming O-360 four-cylinder, carbureted
Horsepower Derated to 131 hp for takeoff and 124 continuous
Maximum Gross Weight 1370 lb (622 kg)
Approximate Empty Weight 880 lb (399 kg)
Standard Fuel (16.9 gal) 101 lb (46 kg)
Auxiliary Fuel (9.4 gal) 56 lb (25 kg)
Pilot, Passenger and Baggage with Standard Fuel 389 lb (176 kg)
Maximum Range no reserve approx 250 nm (288 sm)
Electrical System 14 volt

Robinson R22 Performance

Horsepower Derated to 131 hp for takeoff and 124 continuous
Max Airspeed (Vne) 102 kts (117 mph)
Never Exceed Speed 188 mph (303 kph)
Cruise Speed up to 96 kts (110 mph)
Hover Ceiling IGE @ 1370 lb 9400 ft
Hover Ceiling OGE @ 1300 lb 8000 ft

Cessna 210 Specifications

Crew One
Capacity Five passengers
Length 28 ft 2 in (8.59 m)
Wingspan 36 ft 9 in (11.20 m)
Height 9 ft 8 in (2.95 m)
Wing area 175 ft² (16.23 m²)
Empty weight 2,303 lb (1,045 kg)
Max. takeoff weight 4,000 lb (1,814 kg)
Powerplant 1 × Continental Motors TSIO-520-R air-cooled turbocharged flat-six, 310 hp

Cessna 210 Performance

Maximum speed 204 knots (235 mph, 378 km/h) at 17,000 ft (5,200 m)
Cruise speed 193 knots (222 mph, 358 km/h) at 20,000 ft (6,100 m)
Stall speed 58 knots (67 mph, 108 km/h) CAS, flaps down, power off
Range 900 nmi (1,036 mi, 1,668 km) econ cruise at 10,000 ft (3,050 m)
Service ceiling 27,000 ft (8,230 m)
Rate of climb 930 ft/min (4.7 m/s)
Wing loading 22.9 lb/ft² (111.8 kg/m²)
Power/mass 0.078 hp/lb (0.13 kW/kg)

Cherokee Six Specifications

Takeoff/Landing Weight Normal Category 3,400 lbs.
Standard Empty Weight 1,777 lbs.
Max. Useful Load Normal Category 1,623 lbs.
Baggage Capacity 200 lbs.
Fuel Capacity 84 gallons
Engine Lyc. IO-540-K1A5, 300hp

Cherokee Six Performance

Do Not Exceed Speed 184 KCAS
Max. Structural Cruising Speed 146 KCAS
Stall Speed Clean 61 Knots
Stall Speed Landing Configuration 55 Knots
Climb Best Rate 1050 FPM
Wing Loading 19.5 lbs./sq. ft.
Power Loading 11.3 lbs./sq. ft.
Service Ceiling 16,250 ft.
